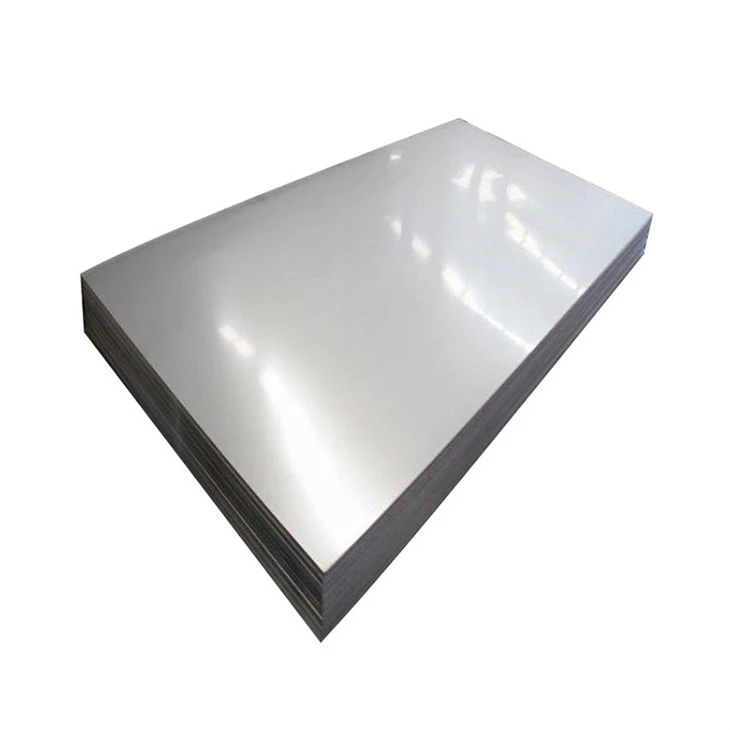

SUS 305 Stainless Steel Plate

Product name:SUS 305 Stainless Steel Plate

Width: 1000-2000mm
Length: 1000-6000mm

Production Capacity:50000 Ton/Year

Ada pertanyaan? Perwakilan penjualan GNEE tersedia untuk obrolan langsung sekarang

Kirim Email:info@gneestainless.com

Telp:+8615824687445

Kirim permintaan Obrolan Sekarang

Deskripsi

SUS 305 stainless steel plates are a premium material known for their superior strength and corrosion resistance. Made from a blend of chromium, nickel, and iron, this steel is highly resistant to rust and other forms of damage, can be easily formed and deep drawn into complex shapes, and, unlike 301 or 304 grade stainless steel, remains non-magnetic after cold working.

One of the main advantages of SUS 305 stainless steel metal plates is its ability to withstand high stresses and pressures without deforming or breaking. This makes it a popular choice in the construction industry, where it is often used to build bridges, buildings, and other structures that need to be strong and durable.

In addition, SUS 305 stainless steel also has extremely strong heat resistance. The corrosion resistance of 305 grade stainless steel is similar to that of 304 grade, and it has good oxidation resistance in air up to 1650 F (899 C), and can withstand high temperatures up to 1000 degrees Celsius without loss of strength or deformation. Whether you are building bridges, constructing buildings, or manufacturing products that require high strength and heat resistance, the SUS 305 stainless steel plates supplied by GNEE are your first choice and will definitely meet your needs.

SUS305 Austenitic stainless steel plate

SUS305 Austenitic Stainless Steel Plate

SUS 305 stainless steel plate Specifications

	SUS 305 stainless steel plate
	Range from 0.3mm to 100mm
	Range from 1000mm to 2200mm
	Range from 2000mm to 6000mm or as requested
	2B, BA, No.1, No.4, HL, polish

JlS G4304 SUS305 stainless steel plates Chemical Composition

	C		P	S				N
	–	–	–	–	–	17.0	10.0	–	–
	0.012	2.0	0.045	0.030	1.00	19.0	13.0	0.10

SUS305 stainless steel thin plate Physical Properties

	At 70℃F	At 20℃
	0.29 lb./in³	7.99 g/cm³
	28.0 x 10³ ksi	193 x 10³
	9.6 x 10⁻⁶ microinches/in.-℃F (32-212℃F)	17.3 μm/m-℃ (0-100℃)
	28.4 μ ohm.in	72 μ ohm.cm
	9.4 Btu-in./ft.²hr.-℃F (100℃)	16.2 W/m-K 100℃)

SUS305 rolled stainless steel sheet Mechanical Properties

Typical mechanical properties are based on AK source, ASTM A240.

		0.2% YS Min	Elongation% in 2" Min (50.8 mm)
	85 ksi (586 MPa)	35 ksi (241 MPa)	55%	70 HRBW (Max)

In addition, we support customization of thickness tolerance of ±0.1mm, cut-to-length (error <=1mm), PE protective film coating, export-grade packaging, and optional surface polishing (BA, No.4, mirror), and provide V-groove processing to meet the needs of non-standard equipment.
